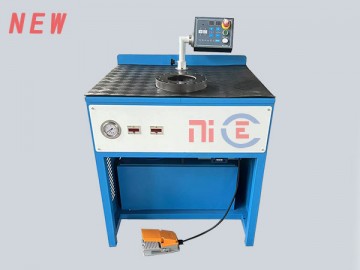

Nut crimping
NS-N10
|
TECHNICAL DATA |
N10 |
|
Swaging force(kN) |
1560 |
|
Scope of wore |
Φ6-76mm |
|
Standard voltage |
380V/50Hz |
|
Die opening |
Φ+30mm |
|
Optiontal voltage and power |
220V/2.2kW |
|

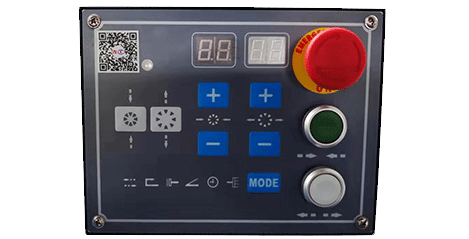

Electronic control |
Standard |
|
Electric pedal |
Standard |
|
Special |
Optional |
|
Dimensions LxWxH |
850x710x830 |
|
Weight without oil |
260kg |
Dies
|
Φ |
12· |
14· |
16· |
19· |
22· |
26· |
30· |
34· |
39· |
45· |
52· |
57· |
66· |
|
mm |
3 |
3 |
4 |
4 |
4.5 |
4.5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
